Hot pressure flash joule heating
Hot pressure flash joule heating

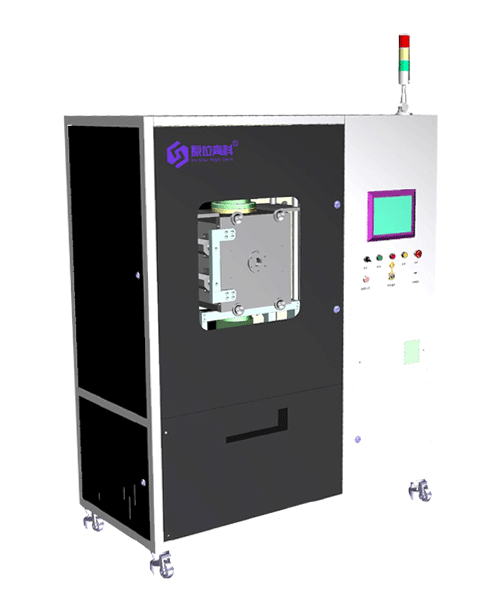

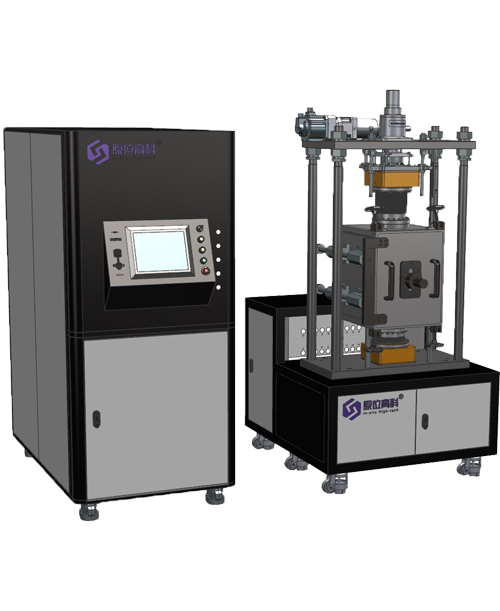

Hot pressure flash Joule heating instrument

Product introduction

Ultra fast high-temperature hot pressing sintering: By combining rapid heating (≥ 2000 ℃/min) and high pressure (≤ 10T) technology, the sintering time can be significantly shortened, ensuring a stronger bonding between powder particles, and thus preparing materials with extremely high density.

The device heats the sample stage to achieve high temperature, and simultaneously uses a motor driven screw to perform online contact pressing on the powder in the sample slot.

Advantages of ultra fast high-temperature hot pressing sintering:

Ultra fast sintering speed: Ultra fast high-temperature hot pressing sintering can significantly shorten sintering time, thereby improving production efficiency. This is very advantageous for applications that require mass production of materials.

Strong adhesion: Due to the effects of high temperature and high pressure, ultra fast high-temperature hot pressing sintering can ensure a stronger bonding between powder particles, thereby providing higher mechanical properties and adhesion.

High density: Ultra fast high-temperature hot pressing sintering can prepare materials with extremely high density, which is very important for some special applications, such as solid-state batteries and high-temperature structural materials.


Application field

Battery materials

High entropy alloy and metal materials

Ceramic materials

Power materials

Product parameters and characteristics

modelCIS-JHP-1030CIS-JHP-2050
Electrical specifications380V 60KW, 50/60Hz compatible (customizable)
Overall dimensionsWidth, height and depth are approximately: 1600*2000*750mmThe width, height and depth of the electric control cabinet are approximately: 800*1920*1600 (mm) The width, height and depth of the cavity mounting frame are approximately: 1000*2100*1200 (mm)
Sample diameter10mm, 20mm, 30mm (customizable)20mm, 50mm (customizable)
Sample thickness5-20mm
Cavity sizeWidth, height and depth are 310*360*300mm (different batches may have differences, please refer to the actual product)Width, height and depth are 340mm*440mm*370mm (different batches may have differences, please refer to the actual product)
Temperature rangeThe maximum mold temperature is not less than 2300℃
Pressure range3T10T
Temperature control accuracy±3℃
Pressure control accuracy±5Kg±20Kg
Fastest controllable heating rate≤5000℃/min≤1200℃/min
System leakage rate≤5E-9 (He)
Cavity limit positive pressure0.02MPa
Electrode insulation resistance (with water)≥1MΩ
Vacuum PumpVRD-24 VRD-30
Operating ambient temperature≤45℃
Sample stage cooling methodAir cooling (normal temperature inert gas/cold argon purge cycle optional)
Chamber cooling methodWater cooling (water chiller required)
ChillerStandard
Temperature probeTemperature measurement range 600-3200℃, accuracy ±1%FS
Vacuum chamber and structural parts materialSUS304
Mold materialgraphite
Observation WindowQuartz window (sapphire and other lenses are optional)
Security FeaturesIt has multiple alarm functions such as over-temperature, over-pressure, over-limit, leakage alarm, water shortage protection, load discharge protection and other multiple protection functions to ensure the safety of equipment and personnel
Real-time detectionMulti-channel pressure detection realizes accurate closed-loop control of mold pressure and temperature, improving experimental results
Automated OperationOne-button start, fully automated water flow control
How to operateHMI touch screen operation, centralized data collection and processing
Shell structureSheet Metal
Gas circuit specificationsair intakes, 1 exhaust, 1 vacuum, 1 safety unloading (other air intake requirements can be customized)
