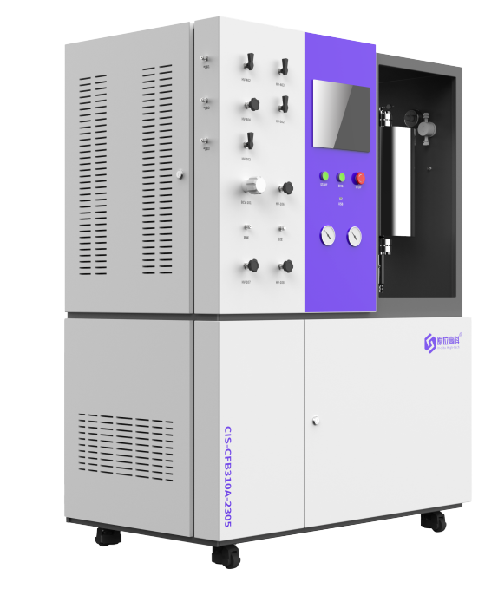

joule-heated fixed reactor

Product introduction

The reaction tube is heated rapidly by the Joule thermal fixed bed through the output pulse of the Joule heating power supply or the stable DC current, and the gas input of the reaction device body and the auxiliary control of preheating and tracing conditions can achieve the required reaction conditions. Compared with the traditional heating method, Joule heating can greatly improve the reaction efficiency and reduce the operating cost

Product parameter

Project	Indicators	Parameters
Number of reaction channels	-	Customize on demand
reaction conditions	Maximum operating temperature	1200 ℃
reaction conditions	Maximum operating pressure	10MPa
Feed module	Feed composition	Single gas phase, multi-component gas phase, gas-liquid two-phase
	Feed pretreatment method	Filtration, vaporization, preheating, mixing
	Gas feeding mode	mass flow controller
Reaction Module	Catalyst requirements	Custom particles (conductive), powder (plus conductive carrier)
	Sample loading	Customize on demand
	Material of reaction tube	Quartz tube (inner tube), stainless steel tube (outer tube)
	Stainless steel material	310S, 316L, 304
Heating module	Heating mode	joule heating
	Device composition	Carbon rod, carbon paper/silicon carbide particles, quartz inner tube, stainless steel outer tube, cooling system
	Total power of unit (KW)	10
Product Separation Module	Split Mode	gas-liquid separation
Product Separation Module	Separation device	Condenser, gas-liquid separator
Product Analysis Module	-	Off-line sampling, on-line GC/MS/IR sampling
Electric control mode	-	Touch screen control
System & Auxiliary Parameters	Power supply	20A,AC380V,50Hz, grounding resistance<4ω<>
	Size (cm)	Less than 12070180 (length * width * height), if necessary, can be specially customized
	Security	Electrical safety chain, the use of hardware and software combination of safety design, overpressure, overtemperature alarm; unloading valve overpressure unloading protection
